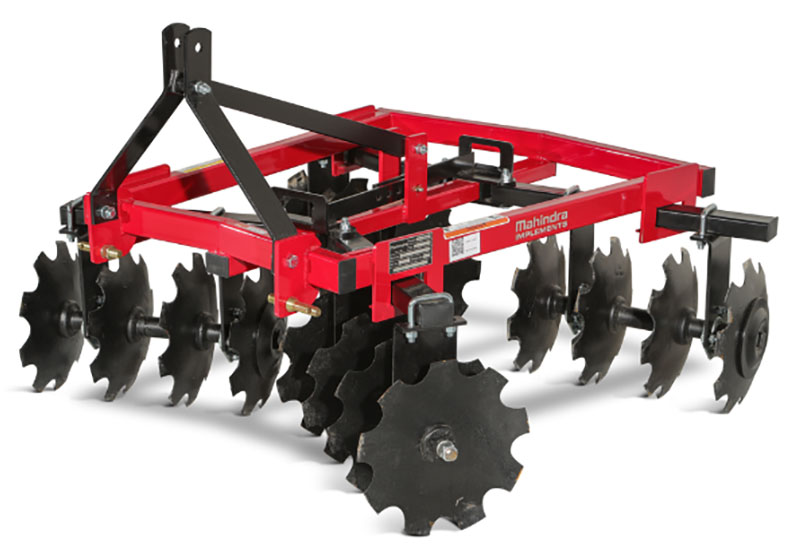

Mahindra 5.5 ft. Medium-Duty Disc Harrow 16X16

Black • New Harrows

Mahindra 5.5 ft. Medium-Duty Disc Harrow 16X16 in Santa Maria, California - Photo 1
Mahindra 5.5 ft. Medium-Duty Disc Harrow 16X16 in Santa Maria, California - Photo 2
Mahindra 5.5 ft. Medium-Duty Disc Harrow 16X16 in Santa Maria, California - Photo 3
Previous
Next
Mahindra 5.5 ft. Medium-Duty Disc Harrow 16X16 in Santa Maria, California - Photo 1
Mahindra 5.5 ft. Medium-Duty Disc Harrow 16X16 in Santa Maria, California - Photo 2
Mahindra 5.5 ft. Medium-Duty Disc Harrow 16X16 in Santa Maria, California - Photo 3
Previous
Next
Request More Information Print Brochure
Apply for Financing
Calculate Payment
Insurance Quote
SAVE MONEY WITHOUT LOSING GROUND
Mahindra medium-duty disc harrows are a budget-friendly alternative to more expensive cultivators. They may not have all the bells and whistles, but they're engineered to get your primary tilling done. There are five configurations, all equipped with hardened notched discs and rigid frames to penetrate, chop, bust up, turn over, and aerate compacted soil.

Request More Information

By pressing SUBMIT, you agree that DX1, LLC and Central Coast Yamaha Polaris Suzuki Can-Am may call/text you at the number provided, for either informational or marketing purposes, using an automatic telephone dialing system or pre-recorded/artificial voices. Msg/data rates may apply. You don’t need to consent as a condition of any purchase & you may revoke your consent at any time. You also agree to our Privacy Statement & Terms of Use.

Mahindra 5.5 ft. Medium-Duty Disc Harrow 16X16

Condition
New
Category
Harrows
Model Type
Medium-Duty Disc Harrows
Model Code
DHA16X16X66
Color
Black

Features

  • Budget-friendly and engineered to get your primary tilling done.
  • Available in five different configurations including 16, 18 or 20 replaceable discs; and 66, 78, or 90-inch width.
  • Equipped with hardened, notched discs and rigid frames.
  • Replaceable discs - Yes

Features & Benefits

  • Category 1, quick-hitch compatible.
  • Heavy-duty 2.5-inch tube frame.
  • Equipped with 16, 18, or 20 replaceable discs.
  • Available in 66-, 78- and 90-inch configurations.
  • Sealed self-aligning bearings keep dirt out and improve product life.

General Information

Manufacturer
Mahindra
Model
5.5 ft. Medium-Duty Disc Harrow 16X16
Model Code
DHA16X16X66
Color
Black

Dimensions

Overall Width
66 in.

Operational

Tractor Size

Min / Max engine - 24 - 40 hp

Compatible with 1626, 1635, 1640, 2638, 2645 and 4540

For older Mahindra tractor models that are not listed on the compatibility sheet, please consult with your Mahindra dealer for your implement selection.

Blade Spacing
7 in.
Blade Size
Diameter - 16 in.
No. of Disc Blades
16
Quick-Hitch Compatible
Yes
Tractor Hitch

Category - 1

Type - 3-point lift

Frame
Tube - 2.5 in.

Other

Warranty
Residential, semi-commercial, regular commercial use - 1 year
