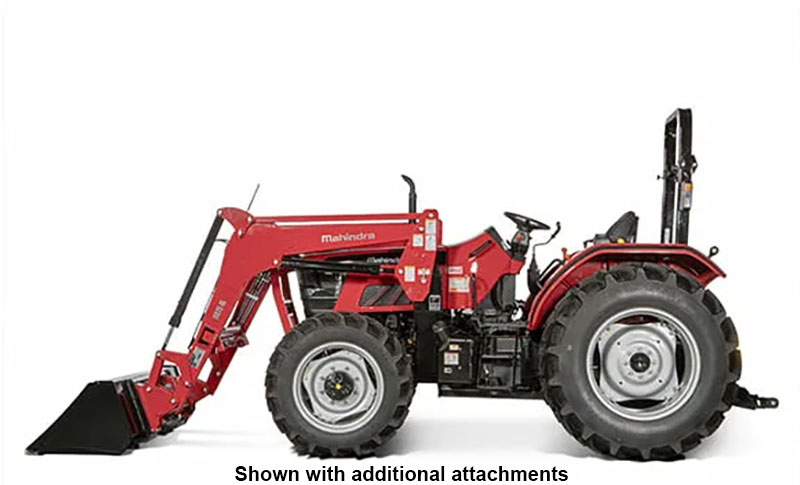

2024 Mahindra 6065 Shuttle

Name: 2024 Mahindra 6065 Shuttle
Brand: Mahindra
Price: 36338 USD

Red • New Tractors

MSRP

$36,338

Call Now!

2024 Mahindra 6065 Shuttle in Santa Maria, California - Photo 1

2024 Mahindra 6065 Shuttle in Santa Maria, California - Photo 2

2024 Mahindra 6065 Shuttle in Santa Maria, California - Photo 3

2024 Mahindra 6065 Shuttle in Santa Maria, California - Photo 4

2024 Mahindra 6065 Shuttle in Santa Maria, California - Photo 5

Request More Information Print Brochure

Apply for Financing

Calculate Payment

Insurance Quote

POWERFUL PERFORMANCE AND COMFORT

Engineered for top-tier performance and operator comfort, these tractors have the power you need to make light work of the heaviest jobs.

Request More Information

Subscribe to Newsletter

By pressing SUBMIT, you agree that DX1, LLC and Central Coast Yamaha Polaris Suzuki Can-Am may call/text you at the number provided, for either informational or marketing purposes, using an automatic telephone dialing system or pre-recorded/artificial voices. Msg/data rates may apply. You don’t need to consent as a condition of any purchase & you may revoke your consent at any time. You also agree to our Privacy Statement & Terms of Use.

2024 Mahindra 6065 Shuttle

Condition

New

Features

Top Features

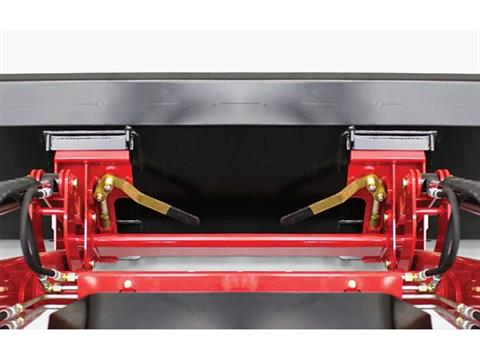

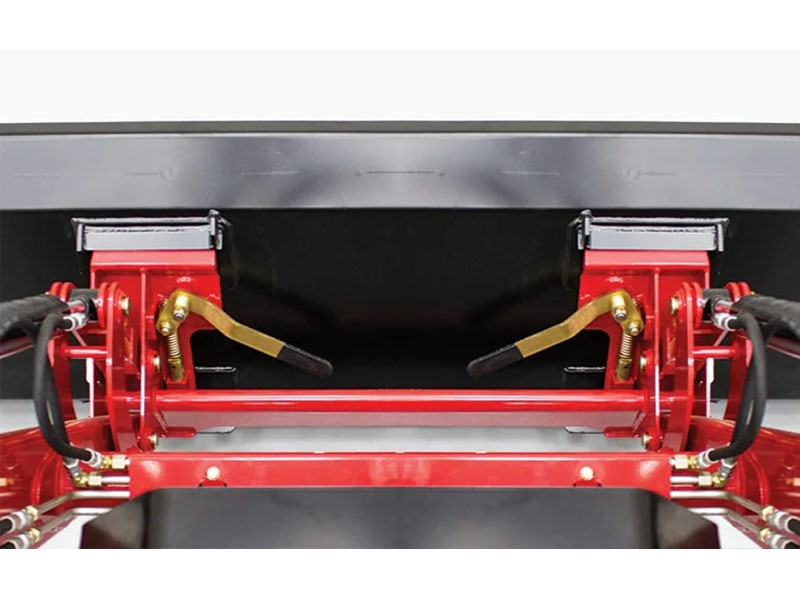

MAXIMIZE LOADER PERFORMANCE WITH ADVANCED TRANSMISSION OPTIONS: Enhance loader efficiency with the versatile 15 Forward and 15 Reverse Mechanical or Power Shuttle Transmission. With the PST, seamlessly transition between forward and reverse, eliminating the need for constant clutch use, optimizing productivity in intensive loader and headland operations.
UNMATCHED CONVENIENCE WITH ELECTROHYDRAULIC PTO: Experience unparalleled convenience with our Button-Operated Electro-Hydraulic PTO or Mechanical PTO, simplifying engagement of the 540/540E PTO for all applications. Benefit from the standard 540E PTO setting for fuel savings and quieter operation during light work.

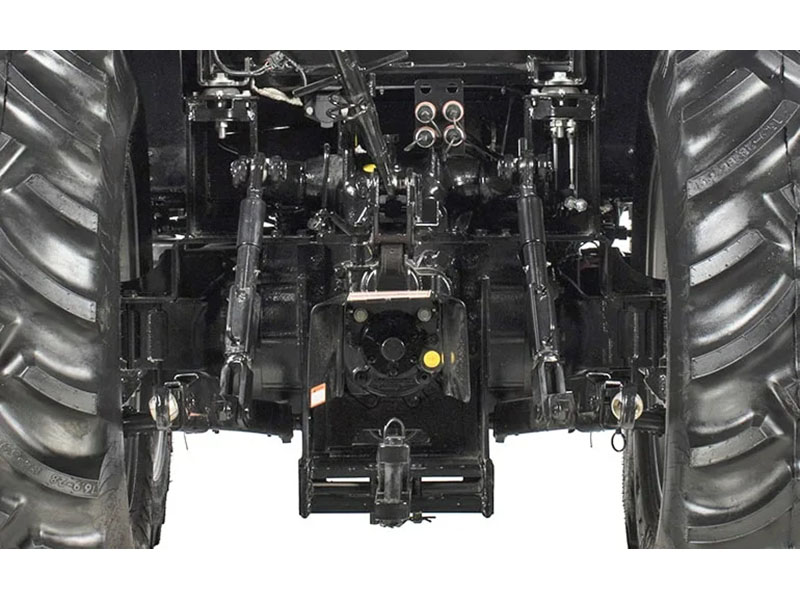

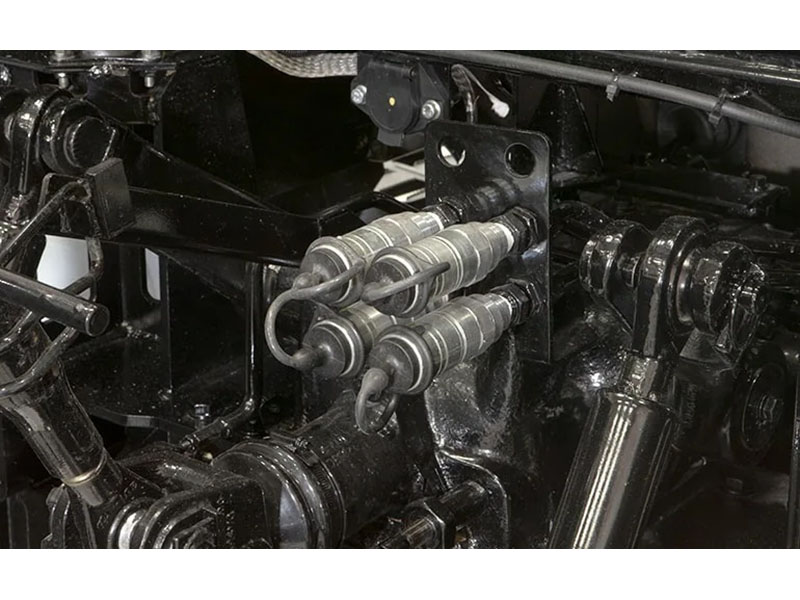

EXPLORE IMPRESSIVE LIFT CAPACITY AND SEAMLESS IMPLEMENT ATTACHMENT: Featuring impressive lift capacity, these tractors allow for a wide range of implement attachment possibilities. With compatibility for Cat 1 and Cat 2 Implements, flexible lower links, and telescopic stabilizers, simplify your work effortlessly. Equipped with one or two standard hydraulic remote outlets, with an optional 2nd or 3rd valve for added convenience.
UNINTERRUPTED PRODUCTIVITY WITH LARGER FUEL TANK: Supplied from an oversized 23.8-gallon easy-access, ground fill fuel tank, you can get more work done between refills.

Specifications

General Information

Manufacturer

Mahindra

Model Year

2024

Model

6065 Shuttle

Model Code

Color

Red

Drivetrain

Transmission

Clutch - Mechanical shuttle with dry clutch

Transmission Type

Full synchro mesh with forward / reverse power shuttle and constant mesh range

Speed - Forward

Max - 21.4 mph

Brakes

Oil immersed, disc diameter — 8.75 in. OD (222 mm), ball and ramp type

Number of Speeds

Forward / Reverse - 15

Tires

Ag (Front) - 11.2 x 24

Ag (Rear) - 16.9 x 30

Industrial (Front) - 43 x 16-20

Industrial (Rear) - 18.4-28

Electrical

Battery

12V, 925 CCA

Alternator

12V, 55A (External fan)

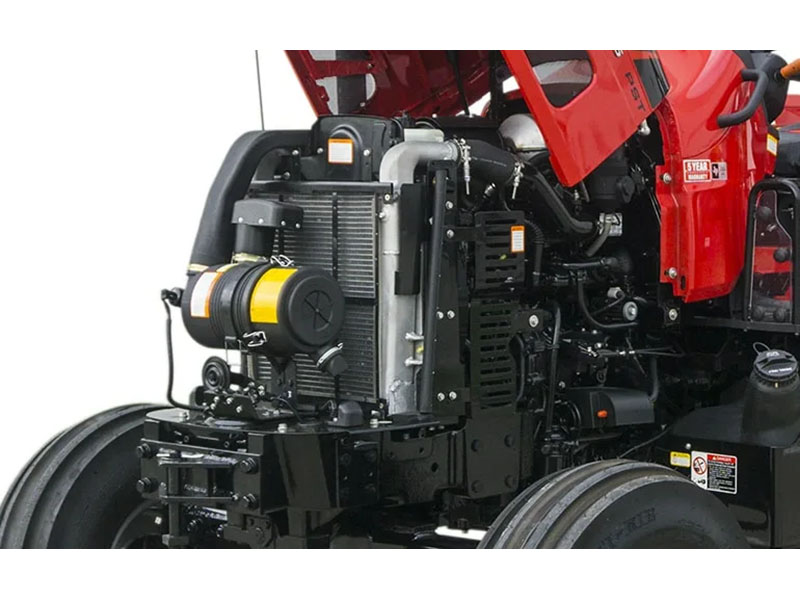

Engine

Injection

Common rail direct

Engine Type

Four-stroke, turbocharged, intercooled, diesel, comply with US Tier-4 Final

Cooling

Water

Bore x Stroke

3.78 x 4.8 in.

Gross Horsepower

62 hp (46.2 kW) @ 2,100 rpm

Cylinders

Displacement

2,650 cc (161.6 ci)

Fuel Tank Capacity

23.8 gal. (90.0 l)

Hydraulics

Maximum Pump Flow

Total - 15.7 gpm (59.4 l / min)

Pump

Total Output, Main - 11.1 gpm (42.0 l / min)

Total Output, Steering - 4.6 gpm (17.4 l / min)

Hydraulic System

Type - Open center with position and draft control, telescoping stabilizers and flex links

Measurements

Height

Overall - 106 in. (2,692 mm)

Length

Overall - 152.7 in. (3,879 mm)

Wheelbase

84.7 in. (2,220 mm)

Weight

6,416 lb. (2,916 kg)

Turning Radius

12.5 ft. (3.8 m)

Width

Overall - 82 in. (2,083 mm)

Ground Clearance

Minimum - 15.5 in. (394 mm)

Operational

Power Take-Off

Type - 2 speed independent single lever type 1 PTO (dry clutch)

PTO Speed

Rear - 540 / 540E rpm

PTO Horsepower

53.5 hp (39.9 kW)

Hitch

3-Point - CAT I & II

Lift Capacity

3-Point hitch @ 24 in. aft - 5,952 lb. (2,706 kg)
